Why Choose Our ESD Corrugated Plastic Sheet?
- Stable Surface Resistance (10⁶-10⁹Ω): consistent and reliable anti-static performance.
- Custom Sizes & Thicknesses: 2mm to 12mm thickness, width up to 2500mm.
- Factory Direct Price: No middlemen are earning your fees.
- Free Samples: Get a fast and free sample in 5-7 days before the formal order.
- More Functions: Conductive, flame-retardant functions are optional.
- On-Time Delivery: We have 16 production lines to ensure your on-time delivery.

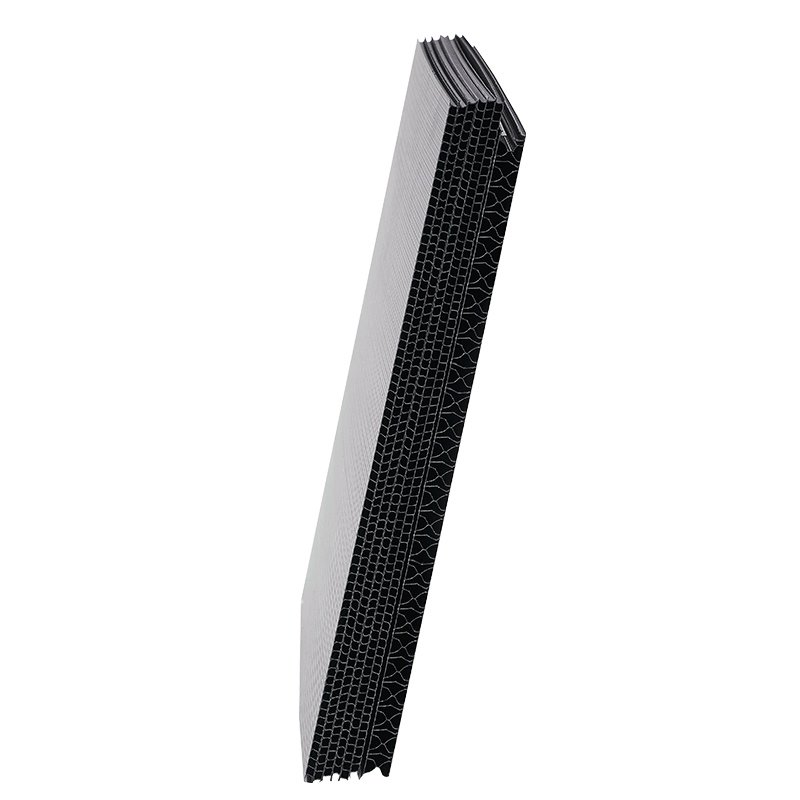

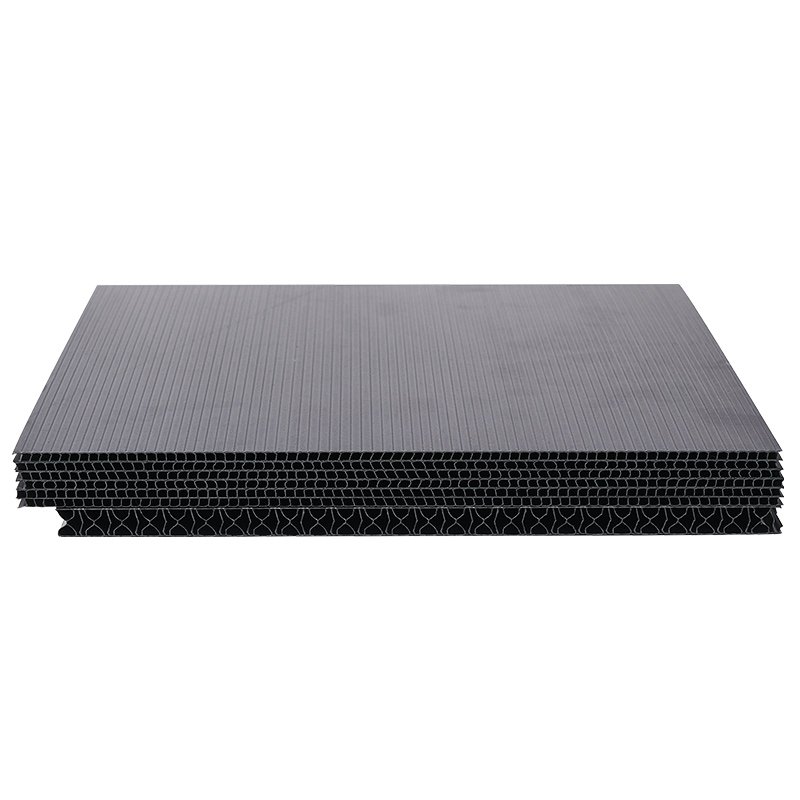

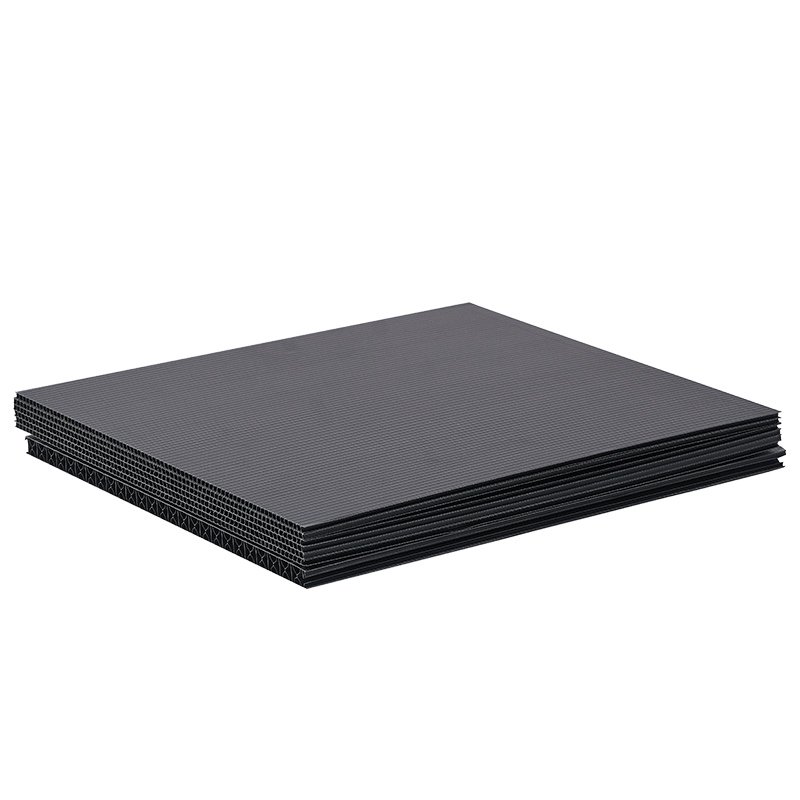

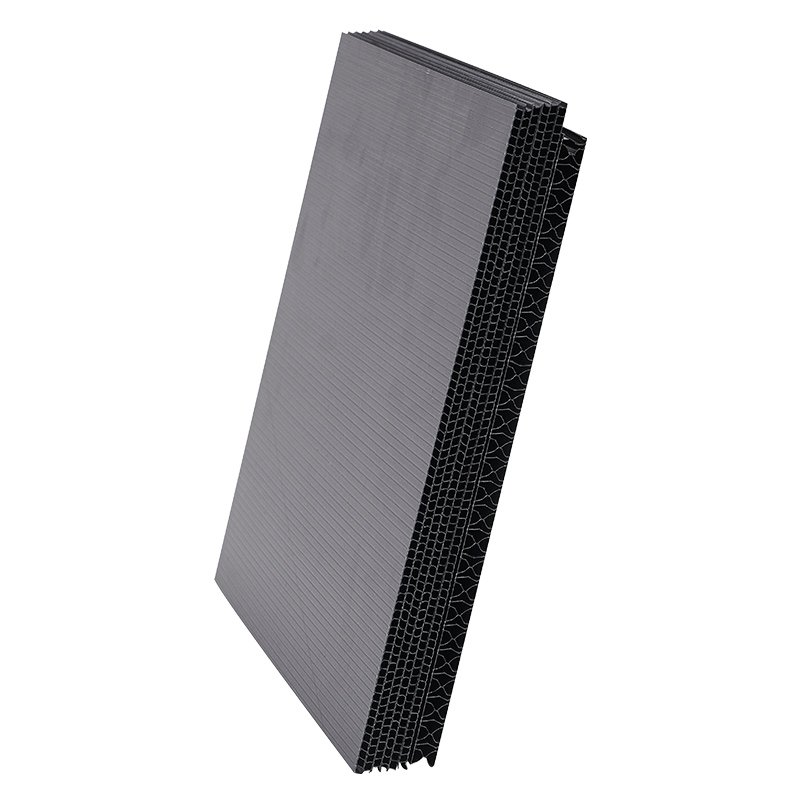

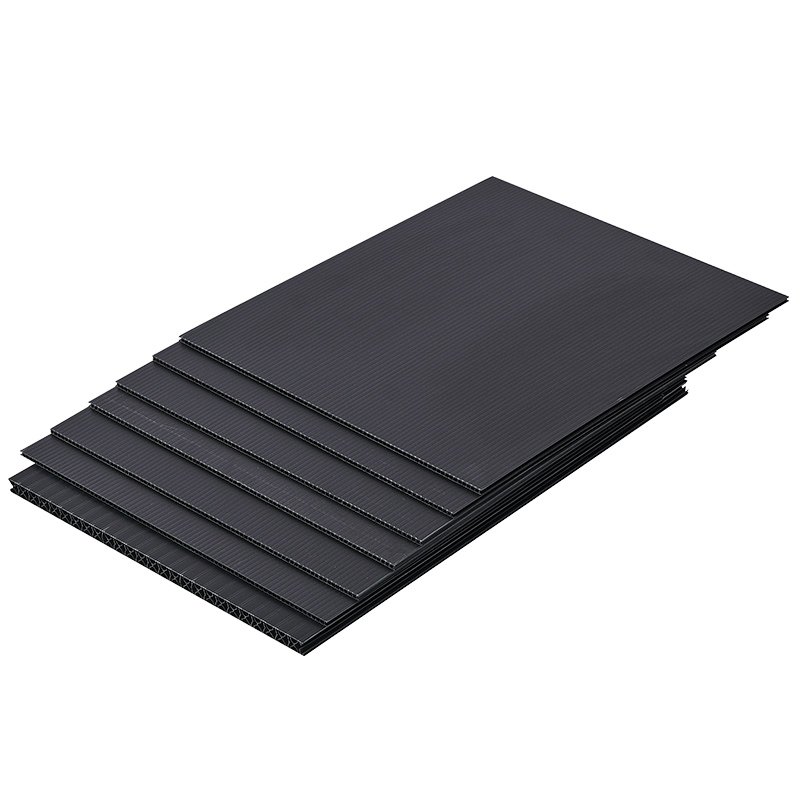

What Are The ESD Corrugated Plastic Sheets?
The ESD corrugated plastic sheets, also called anti-static corrugated plastic sheets, are produced from a non-toxic polypropylene material that can be recycled, with the features of waterproof, anti-static, ligheness, weather resistance, they can be used to make various polypropylene corrugated boxes and trays.
Besides offering our services for producing the ESD corrugated plastic sheets, we also specialize in manufacturing many other types of corrugated plastic boards, including fire-proof, UV-resistant, conductive, etc.

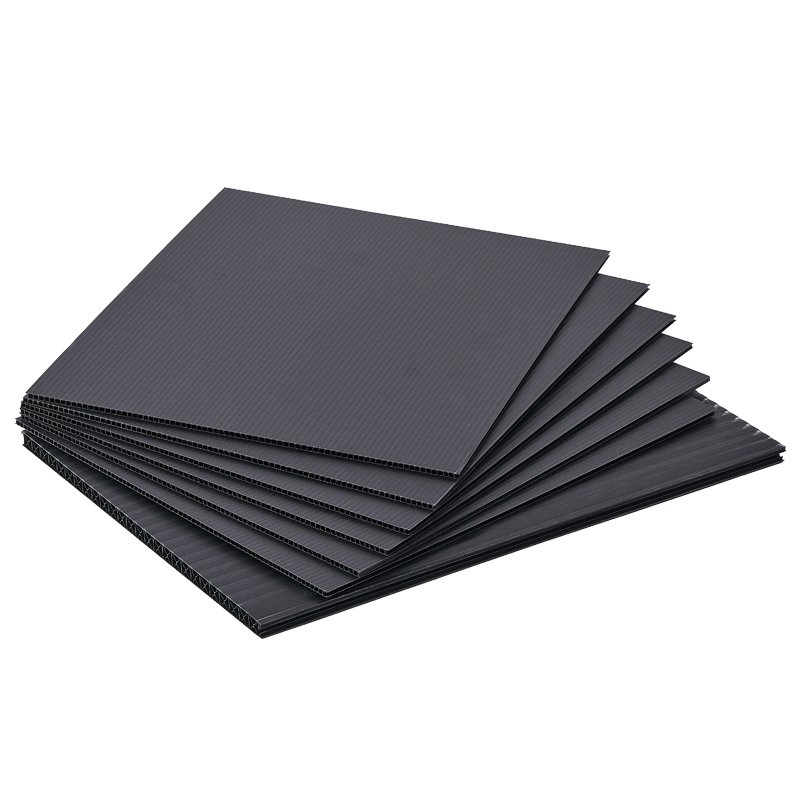

Customize Your ESD Corrugated Plastic Sheet
We have many kinds of ESD corrugated plastic sheets for customers. Some of the common types our customers use are as follows:

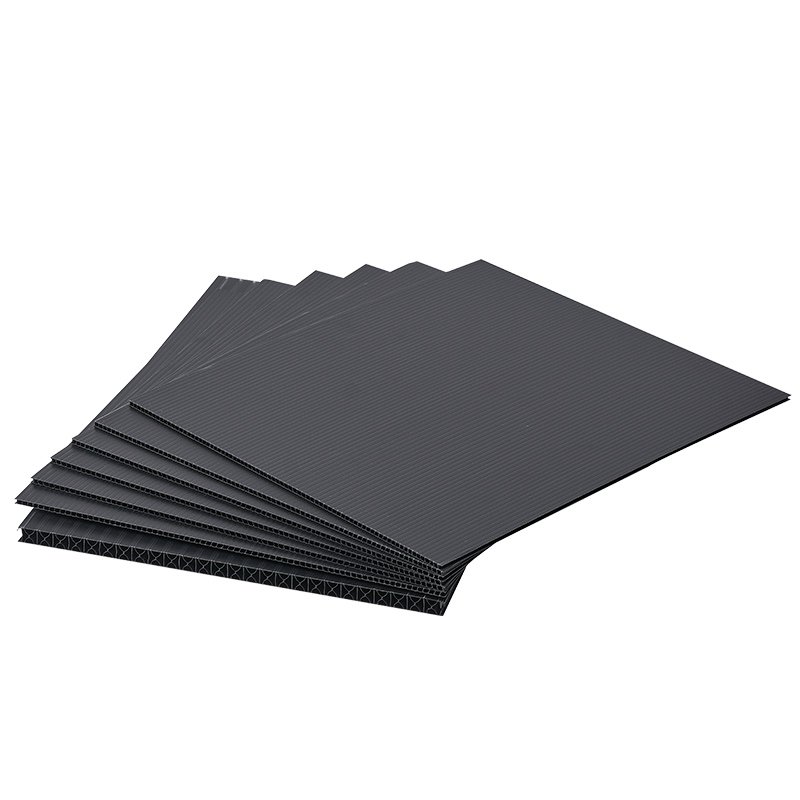

The Standard ESD corrugated plastic sheets can be made into PP corrugated boxes, PP layer pads, ESD plastic dividers, etc.

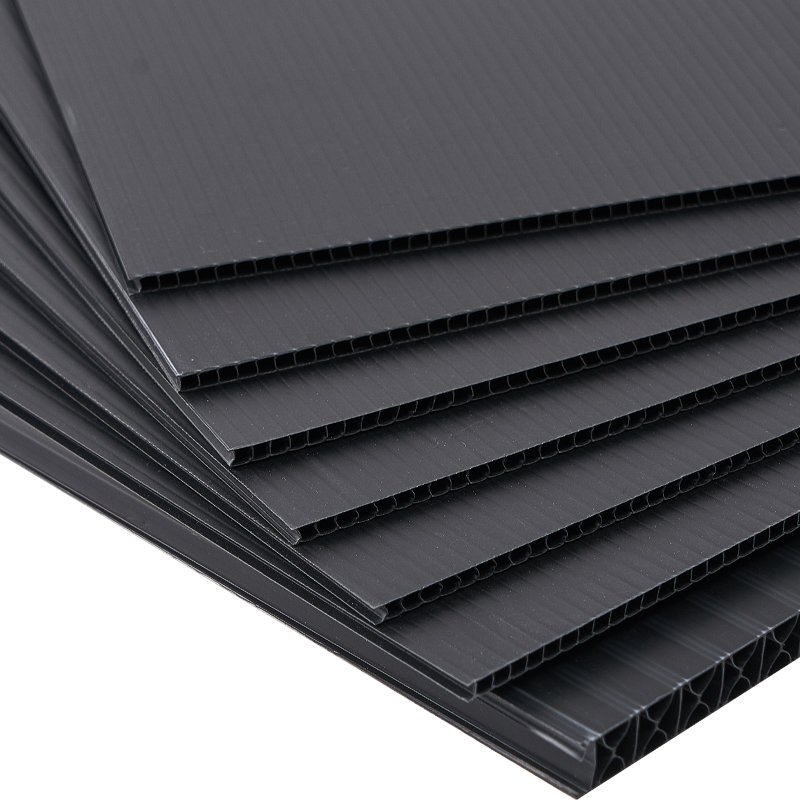

The ESD + Fire-rated Correx sheets can be made into corrugated plastic signs, ESD fire-rated boxes, and warehouse dividers.
They can be used to make ESD turnover boxes for outdoor logistics and ESD corrugated plastic signs for outdoor use.
Customized corrugated plastic boxes, layer pads, corrugated plastic yard signs, and plastic dividers.
Key Features of ESD Corrugated Plastic Sheet
PP material is chemical-resistant, waterproof, and will not rust after long-term use.
It can effectively protect goods and electronic components from electrostatic damage.
Much lighter than cardboard partitions. Reduces packaging costs.
It can stand in horrible weather conditions or in chemical substances.

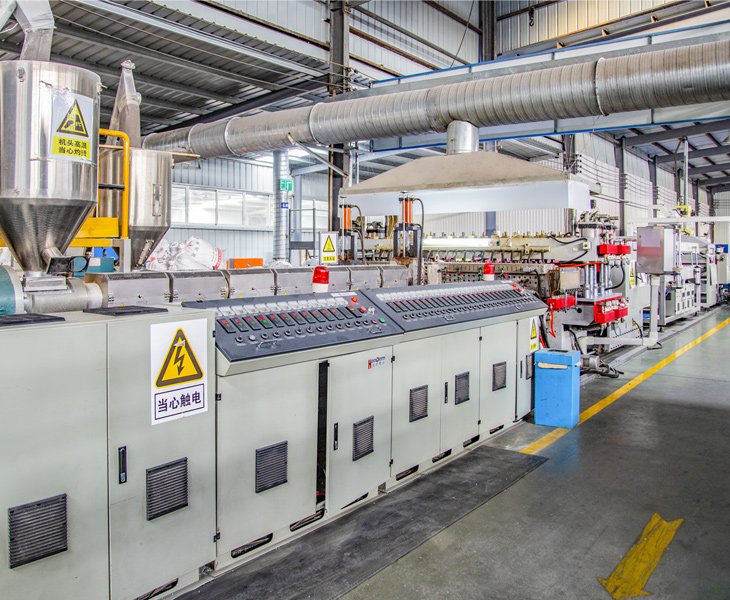

Our Own Production Line Controls the Entire Process
We have 16 fully automated production lines with an annual output of over 20,000 tons of ESD corrugated plastic sheets. From raw material to extrusion molding, the entire process is completed in our factory without outsourcing. Then we conduct surface resistance testing ourselves to ensure compliance with ESD standards.
ESD+other Functions Can Be Stacked for Multiple Purposes
Our ESD corrugated plastic sheets can be added to other functions according to customer needs:
ESD+Fire Rated: suitable for electronic factories

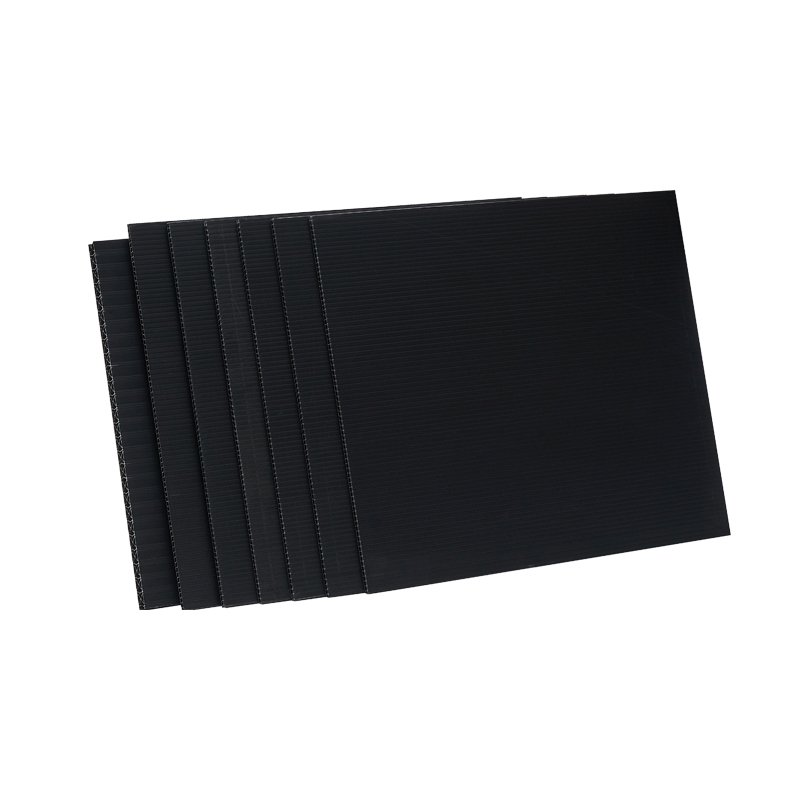

ESD+UV Stabilized: Long-term outdoor use without aging or fading
ESD+Food Grade: suitable for food electronics cross-cutting scenarios
These functions are not sprayed at a later stage but are added to the formula during the board’s extrusion stage, ensuring stable, long-lasting performance.
Resource
Check our product catalog pls click here→
Know more about our production process, pls click here →
Know more about our industrial technical knowledge, pls click here →
Why You Choose Purepack?
As a factory with 16 fully automated production lines and an annual production capacity of over 20000 tons. We have over 260 skilled employees and export our products to more than 120 countries, and 13 years of global service experience.
We offer full customized service, thickness range: 1.2mm to 12mm, maximum width: 2500mm, special functions: anti-static, conductive, flame retardant, UV resistant, etc. With certification of ISO9001, ISO14001, SGS, FDA, TUV, and ROHS.
Choosing us means you are not only choosing an ESD corrugated plastic sheets supplier, but also choosing a self-owned factory that can meet special requirements, and accompany you in the global market.
Esd Corrugated Plastic Sheets Has Various Application
Some of our cases are as follows:

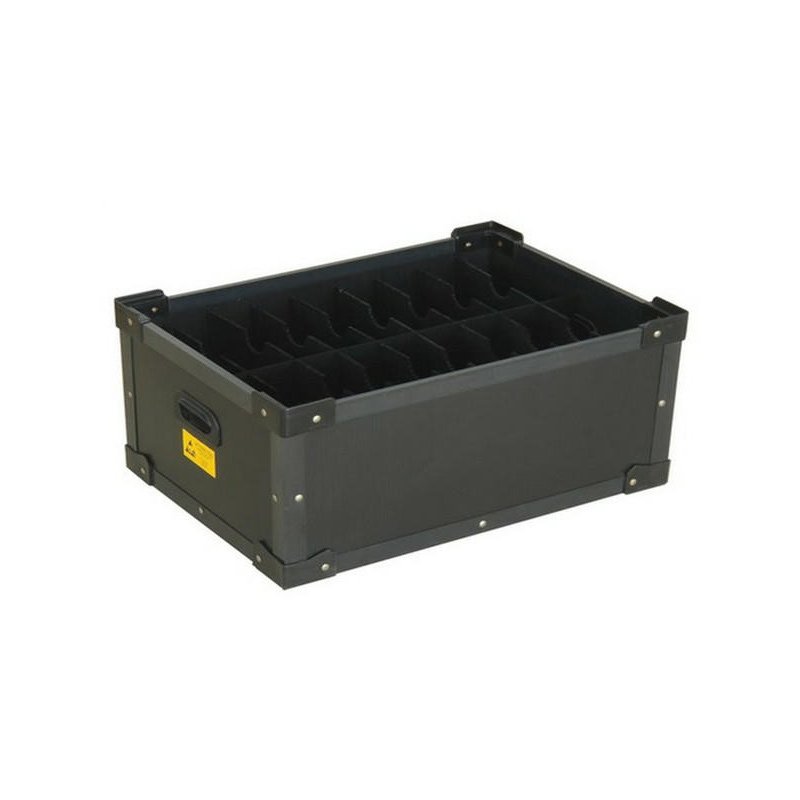

ESD corrugated turnover boxes are widely used for transportation of electronic components.

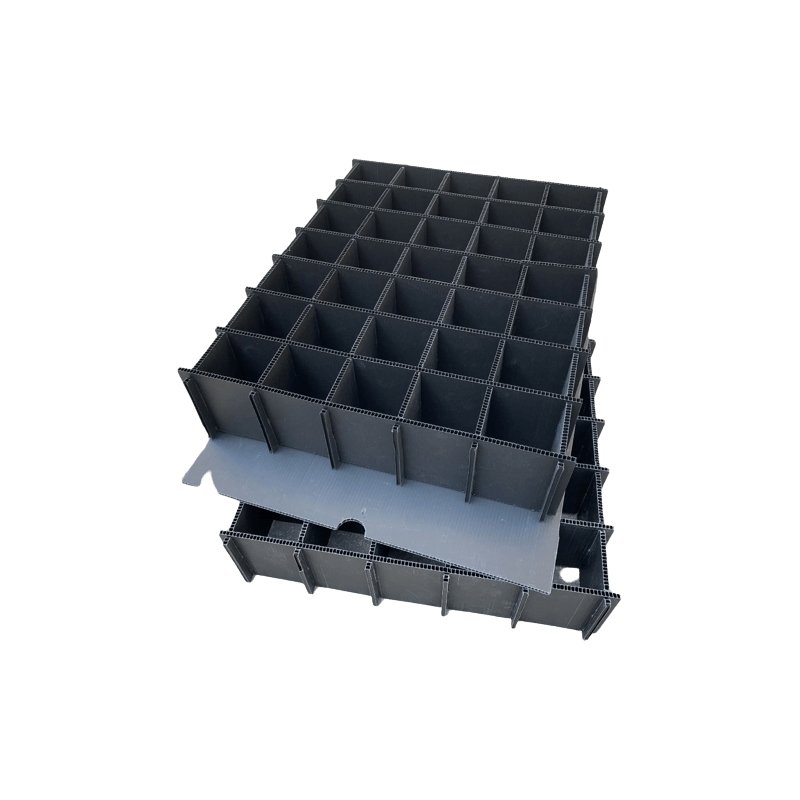

ESD corrugated plastic dividers is the “golden partner” of ESD turnover boxes. It divides the space inside the box into independent small grids for storing and fixing electronic components of different specifications.
- Technical Data
- Customer Gallery
- Quality Certification
- Factory Gallery
| Product Name | ESD Corrugated Plastic Sheets/Anti-static corrugated plastic sheets |
| Typical Thick | 2mm-12mm, or customized |
| Density | 280-3500GSM |
| Surface | Flat, smooth, glossy |
| Special treatment | Fire-resistant, conductive |
| Color | Black, or customized |
| Packaging | Film ordinary packing or according to the customer’s requirements |
| Certificate | ISO9001, ISO14001, SGS, TUV, ROHS |
| MOQ | 1000 pieces |
Testimonials
“We switched to their ESD corrugated plastic sheets for our PCB shipping trays. The surface resistance is perfectly consistent batch after batch, and we’ve seen a 20% drop in ESD-related defects. A supplier who understands the electronics industry’s standards.”
Michael ChenPackaging Engineering Manager, Taiwan“Our previous ESD boxes started losing their properties after six months. These anti-static corrugated plastic sheet from Purepack have maintained their specified resistance range for over two years now. They’ve become our long-term partners.”
Sarah WilliamsSupply Chain Director, Germany
We offer flexible MOQs to support both sample requests for testing and large-volume production orders.
Absolutely. We encourage it. Our fast sample service typically takes 5-10 working days.
We offer both anti-static (10⁶-10⁹ Ω) and conductive (10³-10⁶ Ω). We provide certified test data for every batch.
ESD corrugated plastic sheets: a reliable choice for anti-static packaging in the electronics industry
In the electronics manufacturing industry, electrostatic discharge (ESD) is the number one killer of electronic components. A small static electricity can instantly render valuable chips, PCB boards, or semiconductor components useless. According to industry statistics, the losses caused by ESD can reach billions of dollars annually. Therefore, more and more electronic companies are paying attention to anti-static protection in the packaging process, and ESD corrugated plastic sheets are the key materials to solve this problem.
Two main types to meet different needs
According to the different surface resistance values, our ESD corrugated plastic sheets are divided into two categories:
1. Anti–static type
Surface resistance: 10 ⁶ -10 ⁹ Ω
Suitable for packaging and turnover of electronic components
It can prevent static electricity accumulation and sensitive components effectively
2. Conductive type
Surface resistance: 10 ³ -10 ⁶ Ω
It can be used for components that are extremely sensitive to static electricity, such as semiconductor wafers and precision chips
It can quickly dissipate static electricity, and can provide higher levels of protection
Why does the electronics industry need it?
Many customers ask us, “Isn’t it okay to use ordinary corrugated plastic boards with anti-static bags?”
The answer is: yes, but not reliable enough.
Ordinary corrugated plastic boards themselves are insulators and accumulating static electricity. Even if an anti-static bag is placed outside, static discharge may occur during the handling process. And ESD corrugated plastic sheets can solve it- it is an electrostatic dissipation material, and the entire box, partition, and tray are continuously protecting your products.
A packaging manager from a Taiwanese electronics OEM factory gave us feedback that they previously used ordinary corrugated plastic boards with anti-static bags, and the ESD defect rate has been around 1.5%. After switching to our ESD corrugated board, the defect rate decreased to below 0.3%, and the performance between batches was very stable.
The main application
Among our clients, ESD corrugated plastic sheets are mainly used in the following areas:
PCB board turnover tray: PCB boards on the production line, and trays made of ESD corrugated boards can protect the board surface and prevent electrostatic damage.
Electronic component partition box: With customizable PP partition boards (knife cards), different specifications of components are classified and stored without contact or interference.
Chip packaging box: Semiconductor chips are extremely sensitive to static electricity, and conductive corrugated plastic boards combined with conductive foam are currently one of the most reliable packaging solutions.
Return to factory repair packaging: Many electronic products also require anti-static packaging for return to factory repairs. Boxes made of ESD corrugated boards can be reused and are more economical than disposable anti-static bags.
Technical parameters and certification
The every batch of ESD corrugated plastic boards we produce, we conduct surface resistance tests and provide inspection reports. The main parameters are as follows:
Thickness range: 2mm -12mm, choose according to load-bearing requirements
Standard size: 1220 × 2440mm, can also be cut as needed
Surface resistance: anti-static type 10 ⁶ -10 ⁹ Ω, conductive type 10 ³ -10 ⁶ Ω
Static decay time:<2 seconds (compliant with ANSI/ESD S20.20 standard)
Color: Black (standard ESD color), other colors can also be customized
Our factory has passed ISO9001 quality system certification, and ESD products can provide SGS testing reports to ensure performance meets standards.
Summary
ESD corrugated plastic sheets are not a high-tech myth, but it solves the problem – the way to prevent electronic components from being damaged by static electricity during transportation and storage. For electronic manufacturing enterprises, choosing a stable and batch-consistent ESD packaging material is an real important thing.
If you are worried about anti-static packaging for electronic components, you may want to try our ESD corrugated plastic panels. Feel free to contact us for the latest price and solutions.
